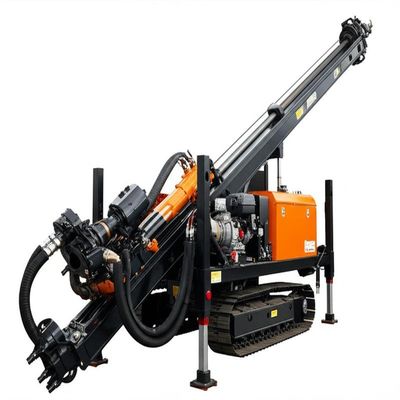

Drillroddiameter Varies From 2 To 6 Inches XZ450F Drilling Solution Maximumdrilldiameter Up To 36 Inches Suitable For Mining

Product Description:

The Horizontal Directional Drill (HDD) is an advanced and versatile drilling machine designed to meet the demanding needs of modern underground construction and utility installation projects. Featuring robust engineering and cutting-edge technology, this drill is ideal for trenchless installation of pipelines, cables, and conduits beneath obstacles such as roads, rivers, and urban areas without disturbing the surface. The Horizontal Directional Drill is available in multiple models, including the XZ130F and XZ450F, each tailored to specific project scales and requirements.

One of the key specifications of this Horizontal Directional Drill is its drill rod diameter, which varies from 2 to 6 inches. This range allows for flexible adaptation to different drilling conditions and project demands. Whether the job requires small-diameter pilot holes or larger bores for substantial pipeline installations, the drill rods can be selected accordingly to ensure optimal performance and efficiency. The rods come in standard lengths of 10 feet, facilitating easier handling and faster assembly during drilling operations.

Powering the Horizontal Directional Drill is a reliable QSB6.7 Tier 4F engine. This engine is renowned for its durability, fuel efficiency, and compliance with stringent emission standards, making it an environmentally friendly choice without compromising on power. The engine delivers the necessary torque and horsepower to handle tough soil conditions and extended drilling tasks, ensuring consistent operation even under challenging environments.

Another critical feature of this HDD system is the mud pump flow rate, which is rated at 100 gallons per minute (GPM). The mud pump is essential for circulating drilling fluid, which cools the drill bit, lubricates the drill rods, and helps remove cuttings from the borehole. A 100 GPM flow rate ensures efficient fluid circulation, minimizing downtime and maximizing drilling speed. This high flow rate also enhances the ability to penetrate various soil types and maintain borehole integrity throughout the drilling process.

The Horizontal Directional Drill boasts an impressive maximum drill length of up to 3000 feet. This capability allows contractors to undertake large-scale projects that require deep and extended directional bores. Whether installing long-distance utility lines or crossing wide obstacles, the HDD can achieve the necessary reach while maintaining precision and stability. The extended drill length capacity is particularly beneficial for urban infrastructure projects where surface disruption must be minimized.

The XZ130F and XZ450F models represent two versatile options within the Horizontal Directional Drill lineup. The XZ130F is well-suited for medium-sized projects, offering a balance of power, maneuverability, and drilling efficiency. It is an excellent choice for contractors looking for a reliable HDD that can handle a variety of soil conditions and installation types. On the other hand, the XZ450F is designed for more heavy-duty applications, equipped to manage larger diameter rods and longer drill lengths, making it ideal for major utility installations and infrastructure developments.

In summary, the Horizontal Directional Drill with drill rod diameters ranging from 2 to 6 inches, powered by a QSB6.7 Tier 4F engine, and equipped with a 100 GPM mud pump flow, is a state-of-the-art solution for underground directional drilling. With rod lengths of 10 feet and a maximum drill length capacity up to 3000 feet, this drill offers unmatched versatility and capability. The XZ130F and XZ450F models provide tailored options to meet the diverse requirements of various projects, ensuring efficient, reliable, and environmentally responsible drilling operations. Whether for commercial, municipal, or industrial applications, this HDD system stands out as a premier choice for trenchless technology solutions.

Features:

• Product Name: Horizontal Directional Drill
• Models: XZ450F, XZ130F
• Applications: Utility Installation, Pipeline Crossing, Cable Laying
• Max Torque: 3,000 Ft-lb
• Drill Rod Diameter: Varies From 2 To 6 Inches
• Drill Pipe Length: 10 Feet
• Drilling Fluid Capacity: 300 Gallons
• Featured Models Include XZ450F for heavy-duty operations
• Compact and efficient XZ130F model available for smaller scale projects

Technical Parameters:

Applications:

The Rongchang Machinery Horizontal Directional Drill is an advanced HDD Drill Rig designed to meet the demanding needs of modern trenchless construction projects. Originating from China, this robust piece of equipment boasts a maximum drill length of up to 3000 feet, making it ideal for long-distance underground installations without disturbing the surface environment. Whether you are working on utility installations, telecommunications, or pipeline projects, the Rongchang Horizontal Directional Drill offers superior performance and reliability.

This HDD Drill Rig is perfectly suited for a variety of application occasions and scenarios. It excels in urban environments where minimal surface disruption is critical, allowing for the installation of water, gas, and electrical conduits beneath roads, rivers, and other obstacles. The machine’s powerful maximum torque of 3,000 ft-lb ensures it can efficiently handle dense soil and rock formations, providing consistent drilling progress even in challenging ground conditions.

The Horizontal Directional Drill is also highly effective in rural and remote locations, where traditional open-cut methods would be impractical or environmentally damaging. With a drill pipe length of 10 feet and a maximum carriage speed of 200 feet per minute, the HDD Drill Rig facilitates rapid and precise borehole creation, reducing project timelines and labor costs. Its design supports various drilling techniques, including pilot hole drilling, reaming, and pipe pulling, making it a versatile tool for multiple underground construction tasks.

Furthermore, Rongchang Machinery provides a one-year or 2000 working hours warranty, ensuring that customers receive dependable support and maintenance for their investment. This warranty underscores the brand’s commitment to quality and durability, making the Horizontal Directional Drill a trusted choice for contractors and engineers worldwide.

In summary, the Rongchang Machinery Horizontal Directional Drill is an indispensable asset for any trenchless technology project requiring efficient, long-distance drilling with minimal surface impact. Its combination of strong torque, extended drill length, and high carriage speed makes it ideal for utility installations, pipeline construction, and telecommunications infrastructure across diverse application occasions and scenarios.
