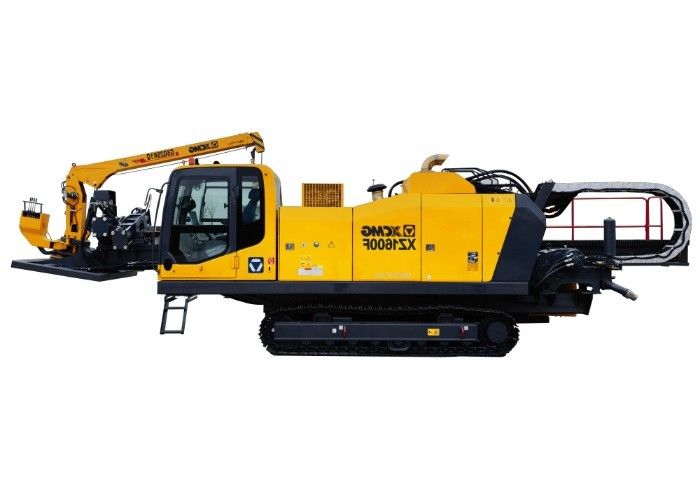

XZ1600F Directional Drilling Rig 1750kN Horizontal And Directional Drilling

XZ1600F Directional Drilling Rig 1750kN Horizontal And Directional Drilling
XZ1600F Directional Drilling Rig 1750kN Horizontal And Directional Drilling

Large Image :  XZ1600F Directional Drilling Rig 1750kN Horizontal And Directional Drilling

Product Details:
Place of Origin: China
Brand Name: Rongchang Machinery
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: standard packing, as customer demands
Delivery Time: 15 - 30 Days
Payment Terms: L/C,T/T,etc.
Contact Now
Detailed Product Description
Highlight:

xz1600f directional drilling rig

,

directional drilling rig 1750kn

,

1750kn horizontal and directional drilling

Precision Horizontal Directional Drill Machine Rongchang Machinerys Industry Leading Equipment



project unit XZ1600F
engine - Cummins
rated power kW/r/min 264/2100
Maximum thrust&pullback force kN 1750
Maximum thrust&pullback speed m/min 45
Torque N·m 55000
Maximum speed r/min 100
Maximum flow L/min 800
greatest pressure MPa 10
Drill pipe mm×m φ114/φ127×6
Lifting weight t 3.2
Lifting moment t·m 6.4
Maximum penetration angle ° 18
quality t 27
Dimensions mm 11700×2760×3550
Remark - Optional: 1. Rotating semi-automatic 2. Low-speed high-torque motor 3.950L/min mud pump;
