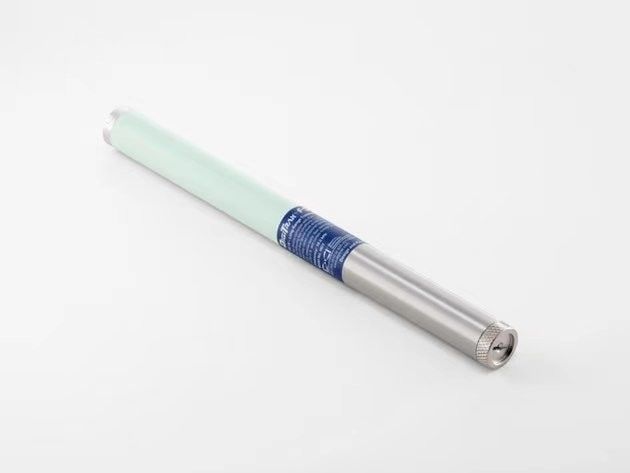

SE DigiTrak Transmitter 12.0 KHz Frequency 50Ft Depth Range
Place of Origin:China
Brand Name:Rongchang Machinery
Minimum Order Quantity:1 pc
Price:Negotiable
Payment Terms:L/C,T/T,etc.
Product Details
Highlight:
SE DigiTrak Transmitter
,12.0 KHz Frequency DigiTrak Transmitter
,50Ft Depth DigiTrak Transmitter
Product Description
DigiTrak SE® transmitters are available in the 12-kHz frequency. These transmitters are compatible with SE systems only. *Note* SX12 and SXX12 Transmitters are only available in India and China*
DigiTrak SE Transmitters
| DigiTrak SE™ transmitters are available in the 12.0 kHz frequency and are compatible with SE systems only. |
| ST 12 Standard-Range Transmitter with 1% Pitch (12 kHz) | |
| Length x Diameter | 15 x 1.25 in. 38.1 x 3.175 cm |
| Depth Range | 50 ft 15.24 m |
| Battery Type (hours awake/asleep) |
2 C-cell alkaline (20/200), or 1 SuperCell (40/300), or 2 SAFT LSH14 (40/400) |
|---|---|
| Max Temp. | 220° F 104° C |
| Weight | 1.4 lb 635 g |
| SES Short-Range Transmitter with 1% Pitch (12 kHz) | |
| Length x Diameter | 8 x 1.00 in. 20.32 x 2.54 cm |
| Depth Range | 15 ft 4.6 m |
| Battery Type (hours awake/asleep) |
1 AA-cell alkaline (12/200) |
| Max Temp. | 180° F 82° C |
| Weight | 8.4 oz 240 g |
| Name | ID | Color | Price |
|---|---|---|---|
| SE 15-in Standard Range Transmitter | ST 12 | Dark Forest Green | |
| SE 8-in Short Range Transmitter-- | NO LONGER AVAILABLE 1/2023 | White | |
| SE 15-in Extended Range Transmitter | SX 12 | Sky Blue | |
| SE 15-in Extended X-Range Transmitter | SXx 12 | Lime Green |
