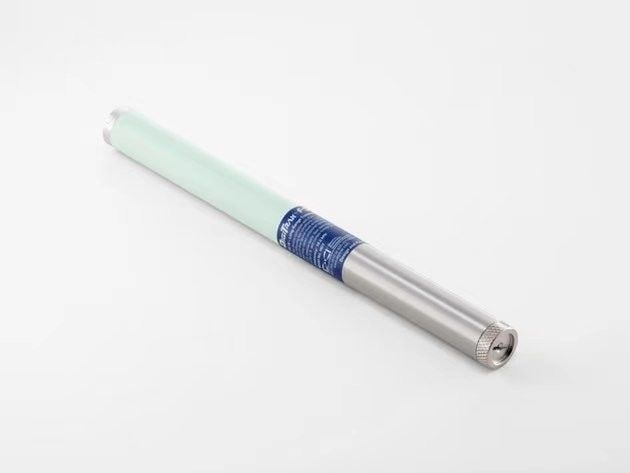

F5 / F2 DigiTrak F Series™ Transmitter 65 Ft 19.8 M Depth Range

Large Image : F5 / F2 DigiTrak F Series™ Transmitter 65 Ft 19.8 M Depth Range

Product Details:

Place of Origin:	China
Brand Name:	Rongchang Machinery

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Price:	Negotiable
Packaging Details:	standard packing, as customer demands
Delivery Time:	15 - 30 Days
Payment Terms:	L/C,T/T,etc.

Contact Now

Detailed Product Description

Highlight:

DigiTrak F Series™ Transmitter

F2 DigiTrak Transmitter

F5 DigiTrak Transmitter

DigiTrak F Series™ transmitters are available in two frequencies, as well as cable and short-range options. These transmitters are compatible with F5® and F2® systems.

DigiTrak F Series Transmitters

DigiTrak F Series™ transmitters are available in two unique frequencies for increased interference reduction, as well as cable and short range options. These transmitters are compatible with F5® and F2® systems.

FX 12 Long Range Transmitter with 0.1% Pitch (12 kHz)

Label Color	Dark Gray
Length x Diameter	15 x 1.25 in. 38.1 x 3.175 cm
Depth Range	65 ft 19.8 m
Battery Type (hours awake/asleep)	2 C-cell alkaline (20/200), or 1 SuperCell (70/400), or 2 SAFT LSH14 (40/400)
Max. Temp.	220° F 104° C
Weight	1.4 lb 635 g

FXL 12 Extended Range Transmitter with 0.1% Pitch (12 kHz)

Length x Diameter	19 x 1.25 in. 48.26 x 3.175 cm
Depth Range	85 ft 25.9 m
Battery Type (hours awake/asleep)	1 SuperCell (40/300)
Max. Temp.	220° F 104° C
Weight	1.85 lb 839 g
For optimal signal emission and battery life, DCI's extended long-range transmitters require a SuperCell lithium battery and a housing with 13 in. (33 cm) slots that start 2 in. (5.1 cm) from the front or index cap end of the transmitter.

FC Cable Transmitter with 0.1% Pitch (12 kHz)

Length x Diameter	19 x 1.25 in. 48.26 x 3.175 cm
Depth Range	90 ft 27.4 m
Battery Type	9–28 VDC Cable Power
Max. Temp.	180° F 82° C
Weight	1.85 lb 840 g

FX 19 Long-Range Transmitter with 0.1% Pitch (19.2 kHz)

Label Color	Navy
Length x Diameter	15 x 1.25 in. 38.1 x 3.175 cm
Depth Range	65 ft 19.8 m
Battery Type (hours awake/asleep)	2 C-cell alkaline (20/200), or 1 SuperCell (40/300), or 2 SAFT LSH14 (40/400)
Max. Temp.	220° F 104° C
Weight	1.4 lb 635 g

FXL 19 Extended Long-Range Transmitter with 0.1% Pitch (19.2 kHz)

Label Color	Navy
Length x Diameter	19 x 1.25 in. 48.26 x 3.175 cm
Depth Range	85 ft 25.9 m
Battery Type (hours awake/asleep)	1 SuperCell (40/300)
Max. Temp.	220° F 104° C
Weight	1.85 lb 839 g
For optimal signal emission and battery life, DCI's extended long-range transmitters require a SuperCell lithium battery and a housing with 13 in. (33 cm) slots that start 2 in. (5.1 cm) from the front or index cap end of the transmitter.

FS Short-Range Transmitter with 0.1% Pitch (12 kHz)

Length x Diameter	8 x 1.00 in. 20.32 x 2.54 cm
Depth Range	15 ft 4.6 m
Battery Type	1 AA-cell alkaline (10 hours awake, 100 hours sleep)
Max. Temp.	180° F 82° C
Weight	8.4 oz 240 g

Name	ID	Color
F Series 15-in 12 kHz Transmitter	FX 12	Dark Gray
F Series 19-in 12 kHz Transmitter	FXL 12	Dark Gray
F Series 15-in 19 kHz Transmitter	FX 19	Midnight Blue
F Series 19-in 19 kHz Transmitter	FXL 19	Midnight Blue
F Series 8-in 12 kHz Transmitter	NO LONGER AVAILABLE 1/2023	White
F Series 12 kHz Cable Transmitter	FC	White
