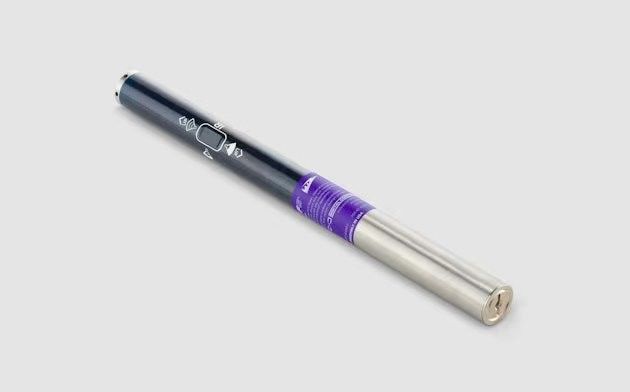

100ft-125ft Depth DigiTrak Falcon F5 Transmitter Horizontal Drilling Tools

Place of Origin:China

Brand Name:Rongchang Machinery

Minimum Order Quantity:1 pc

Price:Negotiable

Payment Terms:L/C,T/T,etc.

Product Details

Highlight:

DigiTrak Falcon F5 Transmitter

,

125ft Depth DigiTrak Falcon F5

,

100ft Depth DigiTrak Falcon F5

Product Description

The DigiTrak Falcon F5 transmitters with Multi-Power, Sub-k®, Fluid Pressure, Full-Scale Sensitive Pitch, and over 1000 frequencies to help you get the job done. Available in 24, 19, 15, and 8-in lengths.

FT5 Transmitter

Product ID	FT5p	FT5Lp
Depth Range	100 ft 30.5 m	125 ft 38.1 m
Data Range	125 ft 38.1 m	150 ft 45.7 m
Frequencies	4.5 to 45 kHz	4.5 to 45 kHz
Battery Type (hours awake/asleep)	2 C-cell alkaline (20/200), or 1 SuperCell (70/400)	1 SuperCell (40/300)
Maximum Temperature	220° F 104° C	220° F 104° C
Length x Diameter	15 x 1.25 in. 38.1 x 3.2 cm	19 x 1.25 in. 48.3 x 3.2 cm
Weight	1.7 lb 771 g	2.0 lb 907 g

FT5 Rebar Transmitter

Product ID	FTR5s	FTR5p	FTR5Lp
Depth Range	25 ft 7.62 m	65 ft 19.8 m	80 ft 24.4 m
Data Range	30 ft 9.1 m	80 ft 24.4 m	100 ft 30.5 m
Frequencies	.33 to 18 kHz	.33 to 18 kHz	.33 to 18 kHz
Battery Type (hours awake/asleep)	123 3V Lithium (up to 12 hours)	2 C-cell alkaline (20/200), or 1 SuperCell (70/400)	1 SuperCell (40/300)
Maximum Temperature	180° F 82° C	220° F 104° C	220° F 104° C
Length x Diameter	8 x 1.0 in. 20.3 x 2.54 cm	15 x 1.25 in. 38.1 x 3.2 cm	19 x 1.25 in. 48.3 x 3.2 cm
Weight	0.5 lb 240 g	1.7 lb 771 g	2.0 lb 907 g

Name	ID	Color
Falcon F5 24-in Wideband Transmitter	FT5XLp	Violet
Falcon F5+ 19-in Wideband Transmitter	FT5Lp	Violet
Falcon F5 15-in Wideband Transmitter	FT5p	Violet
Falcon F5 19-in Sub-k Rebar Transmitter	FTR5Lp	Black
Falcon F5 15-in Sub-k Rebar Transmitter	FTR5p	Black
Falcon F5 8-in Sub-k Rebar Transmitter	FTR5S	Light Gray
