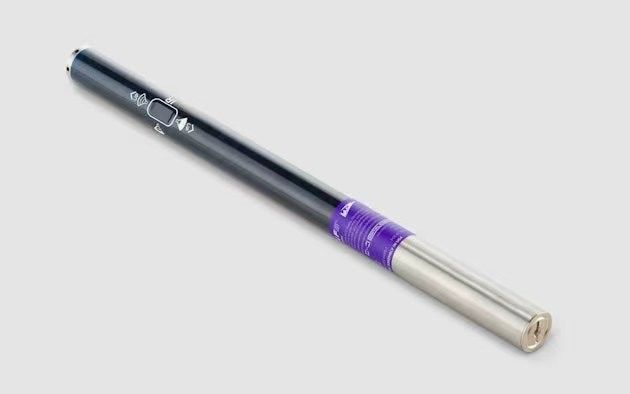

4.5KHz To 45kHz DigiTrak Falcon F5 Locator Transmitter Directional Drilling Tools
45kHz DigiTrak Falcon F5
,4.5kHz DigiTrak Falcon F5
,Falcon F5 Locator Transmitter
The DigiTrak Falcon F5+ transmitters with Multi-Power, Sub-k®, Fluid Pressure (Except 8-in), Full-Scale Sensitive Pitch, and over 1000 frequencies to help you get the job done. Available in 24, 19, 15, and 8-in lengths.
FT5 Transmitter
| Product ID | FT5p | FT5Lp |
|---|---|---|
| Depth Range | 100 ft 30.5 m |
125 ft 38.1 m |
| Data Range | 125 ft 38.1 m |
150 ft 45.7 m |
| Frequencies | 4.5 to 45 kHz | 4.5 to 45 kHz |
| Battery Type (hours awake/asleep) |
2 C-cell alkaline (20/200), or 1 SuperCell (70/400) |
1 SuperCell (40/300) |
| Maximum Temperature | 220° F 104° C |
220° F 104° C |
| Length x Diameter | 15 x 1.25 in. 38.1 x 3.2 cm |
19 x 1.25 in. 48.3 x 3.2 cm |
| Weight | 1.7 lb 771 g |
2.0 lb 907 g |
FT5 Rebar Transmitter
| Product ID | FTR5s | FTR5p | FTR5Lp |
|---|---|---|---|
| Depth Range | 25 ft 7.62 m |
65 ft 19.8 m |
80 ft 24.4 m |
| Data Range | 30 ft 9.1 m |
80 ft 24.4 m |
100 ft 30.5 m |
| Frequencies | .33 to 18 kHz | .33 to 18 kHz | .33 to 18 kHz |
| Battery Type (hours awake/asleep) |
123 3V Lithium (up to 12 hours) | 2 C-cell alkaline (20/200), or 1 SuperCell (70/400) |
1 SuperCell (40/300) |
| Maximum Temperature | 180° F 82° C |
220° F 104° C |
220° F 104° C |
| Length x Diameter | 8 x 1.0 in. 20.3 x 2.54 cm |
15 x 1.25 in. 38.1 x 3.2 cm |
19 x 1.25 in. 48.3 x 3.2 cm |
| Weight | 0.5 lb 240 g |
1.7 lb 771 g |
2.0 lb 907 g |
Deeper Depth
Increased depth and data range – 180/220 ft (55/67m) combined with more frequencies to get more jobs done.
Multi-Power
Three easily selectable power modes for deeper bores, longer battery life, and faster data rates.
Falcon Technology
Packed with over 1000 frequencies for the lowest, highest, and widest range of bands.
Rebar Transmitters
Drill under reinforced concrete confidently with our industry-exclusive Sub-k® Rebar transmitter.
Fluid Pressure
Reduce the risk of inadvertent returns with our patented real-time downhole fluid pressure monitoring.
Rechargeable LIR Adapter
Rechargeable Lithium-Ion batteries compatible with new adapter
Snooze Mode
With DCI's limited-edition Falcon transmitter (Tx) with SnooZe/ZMode the Tx signal can be turned off down-hole and turned back on as needed. This can extend battery life up to 30+ days for wireline projects that require walkover capability on demand.
