Fully Hydraulic Soil Pipe Jacking Machine For Sand Gravel
Soil Pipe Jacking Machine
,Fully Hydraulic Pipe Jacking Machine
,Sand Pipe Jacking Machine

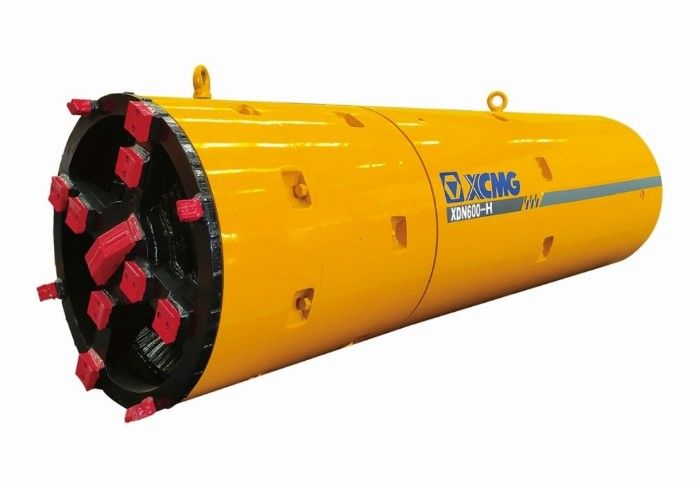

XDN-H series pipe jacking machine pipe jacking machine
Expert evaluation:
The XDN-H series pipe jacking machine is a fully hydraulic soil pipe jacking machine, mainly suitable for ordinary soil layers, sand layers, gravel and other strata. Using graded anti-jacking technology, the diameter of the starting well is small, and the hydraulic motor and reducer are equipped with integral mechanical seals, which have good waterproof and moisture-proof performance. The two pumps merge, the idle speed is fast, and the waiting time for construction is short. The cutter head speed and jacking speed can be adjusted steplessly, and the machine has strong adaptability to the formation.
product description
1. Fully hydraulic soil pipe jacking machine, mainly suitable for ordinary soil, sand, gravel and other strata.
2. Applying graded anti-top technology, the starting well diameter is small.
3. The hydraulic motor and reducer are equipped with integral mechanical seals, which have good waterproof and moisture-proof properties.
4. The two pumps merge, the idle speed is fast, and the waiting time for construction is short.
5. The cutter head speed and jacking speed can be adjusted steplessly, and the machine has strong adaptability to the formation.
| 型号 | 刀盘功率 (kW) |
刀盘最大转速 (r/min) |
纠偏推力 (t) |
进排泥管径 (mm) |
始发井尺寸 (mm) |
接收井尺寸 (mm) | 外径×长度 (mm) |
| XDN400H | 18.5 | 7 | 22×3 | 75 | φ3300 | φ2800 | φ560×2530 |
| XDN500H | 18.5 | 7 | 22×3 | 75 | φ3300 | φ2800 | φ695×2400 |
| XDN600H | 18.5 | 6 | 22×3 | 75 | φ3300 | φ2800 | φ795×2410 |
| XDN800H | 30 | 4.7 | 48×3 | 75 | φ4100 | φ3500 | φ980×3010 |
| XDN1000H | 30 | 3.7 | 63×3 | 75 | φ4200 | φ3500 | φ1220×3025 |
| XDN1200H | 45 | 6 | 80×3 | 100 | φ4350 | φ3500 | φ1470×3570 |
