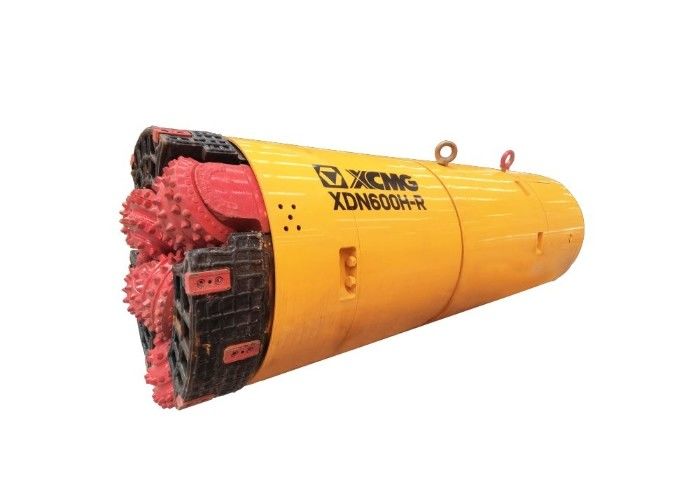

Rock Hydraulic Pipe Jacking Machine XDN-H-R For Gravel Pebbles
Rock Hydraulic Pipe Jacking Machine
,XDN-H-R Hydraulic Pipe Jacking Machine
,Gravel Pipe Jacking Machine
XDN-H-R series pipe jacking machine pipe jacking machine
Expert evaluation:
The XDN-H-R series pipe jacking machine is a fully hydraulic rock pipe jacking machine. It is mainly suitable for gravel, pebbles, a small amount of boulders, rocks and other strata. It is equipped with an eccentric conical crushing chamber and a customized gear hob. It has high rock breaking efficiency and a knife The disc is hydraulically driven, with large output torque, wide speed adjustment range, and fast construction speed. The patented deflection-correcting sealing structure has a long service life. When excavation in heterogeneous strata, the hydraulic motor can withstand frequent impact loads and has higher reliability.
product description
1. Fully hydraulic rock pipe jacking machine, mainly suitable for gravel, pebbles, a small amount of boulders, rocks and other strata.
2. Equipped with an eccentric conical crushing chamber and customized gear hob, the rock breaking efficiency is high.
3. The cutter head is hydraulically driven, with large output torque, wide speed adjustment range and fast construction speed.
4. Patented technology for deviation correction and sealing structure, long service life.
5. When excavation in heterogeneous strata, the hydraulic motor can withstand frequent impact loads and has higher reliability.
| 型号 | 功率 (kW) |
刀盘最大转速 (r/min) |
纠偏推力 (t) |
进排泥管径 (mm) |
始发井尺寸 (mm) |
接收井尺寸(mm) | 外径×长度(mm) |
| XDN400H-R | 30 | 15 | 22×3 | 75 | φ3500 | φ3000 | φ560×2640 |
| XDN500H-R | 30 | 15 | 22×3 | 75 | φ3500 | φ3000 | φ695×2530 |
| XDN600H-R | 30 | 14 | 22×3 | 75 | φ3500 | φ3000 | φ795×2590 |
| XDN800H-R | 45 | 14 | 48×3 | 100 | φ4300 | φ3700 | φ980×3160 |
| XDN1000H-R | 45 | 8 | 63×3 | 100 | φ4500 | φ3700 | φ1220×3150 |
| XDN1200H-R | 45 | 5.2 | 80×3 | 100 | φ4350 | φ3500 | φ1470×3570 |
