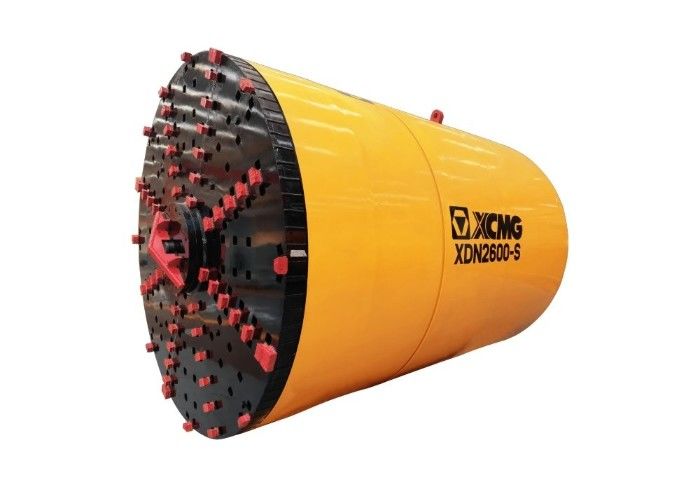

XDN-S Hydraulic Pipe Jacking Machine Flat Plate Pipe Jacking Equipment
XDN-S Hydraulic Pipe Jacking Machine
,Flat Plate Pipe Jacking Equipment
,XDN-S Pipe Jacking Equipment
XDN-S series pipe jacking machine pipe jacking machine
Expert evaluation:
The XDN-S series pipe jacking machine is an electric-driven flat-plate pipe jacking machine. It is mainly suitable for ordinary soil layers and sand layers, especially in silt and quicksand strata. It has high construction efficiency, good excavation surface support effect, small ground settlement, and controllable surface deformation. , the cutter head speed, jacking speed, and mud flow rate can be adjusted steplessly. The equipment has good maneuverability and the human-machine interactive console dynamically displays the operating parameters and working status of each component.
product description
1. The electric-driven flat pipe jacking machine is mainly suitable for ordinary soil layers and sand layers, and has high construction efficiency especially in silt and quicksand strata.
2. The excavation surface has good support effect, small ground settlement, and controllable surface deformation.
3. The cutter head speed, jacking speed, and mud flow rate can be adjusted steplessly, and the equipment has good controllability.
4. Human-computer interactive console dynamically displays the operating parameters and working status of each component.
| 型号 | 刀盘功率 (kW) |
刀盘最大转速 ( r/min) |
纠偏推力 (t) |
进排泥管径 ( mm) |
外径×长度 (mm) |
| XDN800-S | 30×1 | 5.7 | 63×3 | 100 | φ980×3000 |
| XDN1000-S | 30×1 | 5.7 | 63×3 | 100 | φ1220×3000 |
| XDN1200-S | 22×2 | 4.4 | 63×4 | 100 | φ1460×4150 |
| XDN1350-S | 22×2 | 4.4 | 63×4 | 100 | φ1640×4150 |
| XDN1400-S | 22×2 | 4.4 | 63×4 | 100 | φ1700×4150 |
| XDN1500-S | 30×2 | 4.2 | 80×4 | 125 | φ1820×4570 |
| XDN1600-S | 30×2 | 4.2 | 80×4 | 125 | φ1940×4520 |
| XDN1650-S | 30×2 | 4.2 | 80×4 | 125 | φ2000×4520 |
| XDN1800-S | 30×3 | 4.2 | 100×4 | 125 | φ2180×4520 |
| XDN2000-S | 30×3 | 4.2 | 120×4 | 125 | φ2420×4520 |
| XDN2200-S | 30×4 | 3.2 | 150×4 | 150 | φ2670×4935 |
| XDN2400-S | 30×4 | 3.2 | 150×4 | 150 | φ2910×4935 |
| XDN2600-S | 30×5 | 3.2 | 200×4 | 150 | φ3150×4935 |
| XDN2800-S | 30×5 | 3.2 | 200×4 | 150 | φ3390×4935 |
| XDN3000-S | 37×6 | 2.8 | 200×4 | 150 | φ3630×4735 |
| XDN3200-S | 37×6 | 2.8 | 155×8 | 150 | φ3860×4735 |
| XDN3500-S | 37×6 | 2.6 | 200×8 | 150 | φ4130×4900 |
| XDN4000-S | 37×8 | 2.6 | 200×8 | 150 | φ4830×4900 |
