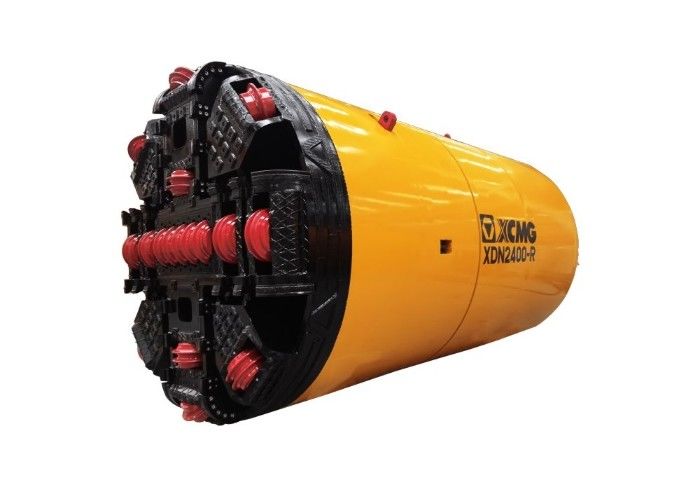

XDN-R Pipe Jacking Equipment Electric Driven Rock Pipe Jacking Machine
XDN-R Pipe Jacking Equipment
,XDN-R Pipe Jacking Machine
,Rock Pipe Jacking Machine
XDN-R series pipe jacking machine pipe jacking machine
Expert evaluation:
The XDN-R series pipe jacking machine is an electric-driven rock pipe jacking machine, mainly suitable for gravel, pebbles, a small amount of boulders and rock formations. The cutterhead has high power and is equipped with a high-torque reduction gearbox, which has strong rock-breaking ability. The main top has a fine adjustment mode, which can achieve millimeter-level precision adjustment per minute to meet the construction requirements of extremely hard rock formations. The mud inlet and outlet system can realize internal and external circulation. It has five mud circulation modes, bypass, external water supply and direct discharge, which effectively solves problems such as debris deposition and high pipeline friction. It is equipped with a retractable anti-rotation device, which effectively solves the problem of easy rotation of the machine head during rock formation construction.
product description
1. Electrically driven rock pipe jacking machine is mainly suitable for gravel, pebbles, a small amount of boulders and rock formations.
2. The cutterhead has high power and is equipped with a high-torque reduction gearbox, which has strong rock-breaking ability.
3. The main roof has a fine adjustment mode, which can achieve millimeter-level precision adjustment per minute to meet the construction requirements of extremely hard rock formations.
4. The mud inlet and outlet system can realize five mud circulation modes: internal, external circulation, bypass, external water supply, and direct discharge, effectively solving problems such as debris deposition and high pipeline friction.
5. Equipped with a retractable anti-rotation device, which effectively solves the problem of easy rotation of the machine head during rock formation construction.
| 型号 | 刀盘功率 (kW) |
刀盘最大转速 ( r/min) |
纠偏推力 (t) |
进排泥管径 ( mm) |
外径×长度 (mm) |
| XDN1000-R | 15×2 | 4.6 | 48×4 | 100 | φ1280×4000 |
| XDN1200-R | 22×2 | 4.4 | 63×4 | 100 | φ1470×4760 |
| XDN1350-R | 22×2 | 4.4 | 63×4 | 100 | φ1650×4760 |
| XDN1400-R | 22×2 | 4.4 | 63×4 | 100 | φ1710×4760 |
| XDN1500-R | 37×2 | 4.8 | 80×4 | 125 | φ1830×5125 |
| XDN1600-R | 37×2 | 4.8 | 80×4 | 125 | φ1950×5125 |
| XDN1650-R | 37×2 | 4.8 | 80×4 | 125 | φ2010×5125 |
| XDN1800-R | 37×3 | 4.8 | 100×4 | 125 | φ2190×5125 |
| XDN2000-R | 37×4 | 4.8 | 120×4 | 125 | φ2430×5125 |
| XDN2200-R | 37×4 | 3.8 | 150×4 | 150 | φ2680×5500 |
| XDN2400-R | 37×5 | 3.8 | 150×4 | 150 | φ2920×5500 |
| XDN2600-R | 37×5 | 3.8 | 200×4 | 150 | φ3160×5500 |
| XDN2800-R | 37×6 | 3.8 | 200×4 | 150 | φ3400×5500 |
| XDN3000-R | 37×6 | 2.6 | 150×8 | 150 | φ3640×5500 |
| XDN3200-R | 37×6 | 2.6 | 150×8 | 150 | φ3880×5500 |
| XDN3500-R | 37×8 | 2 | 200×8 | 150 | φ4240×5650 |
| XDN4000-R | 37×8 | 2.6 | 200×8 | 150 | φ4840×5650 |
