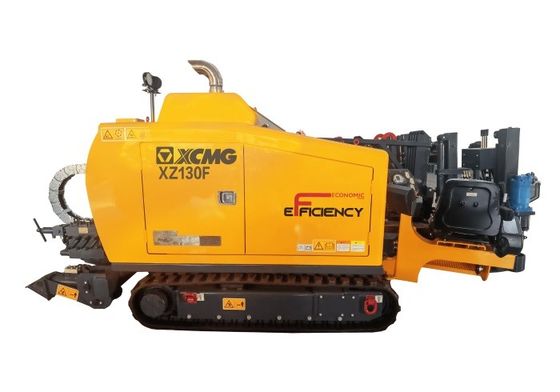

XZ130F Horizontal Directional Drill Machine For Precision Underground Boring

Place of Origin:China

Brand Name:Rongchang Machinery

Minimum Order Quantity:1 pc

Price:Negotiable

Payment Terms:L/C,T/T,etc.

Product Details

Highlight:

xz130f horizontal directional drill machine

,

xz130f directional drilling machine

,

precision directional drilling machine

Product Description

project	unit	XZ130F
engine	-
Maximum thrust&pullback force	kN	135
Maximum thrust&pullback speed	m/min	40
Torque	N·m	3200
Maximum speed	r/min	230
Maximum flow	L/min	100
greatest pressure	MPa	4
Drill pipe	mm×m	φ52×1.8
Lifting weight	t	—
Lifting moment	t·m	—
Maximum penetration angle	°	18
quality	t	5
Dimensions	mm	4200×1680×2170
Remark	-	Optional: 1. Fully automatic gripper; 2. Double anchoring; 3. Mud antifreeze; 4. Wireless walking; 5. Thread oil application;
