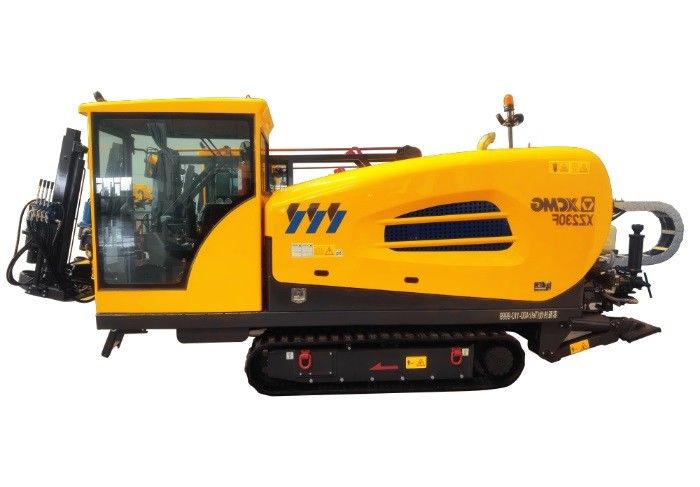

XZ230F Horizontal Directional Drill Machine 230kN Directional Drill Rig

XZ230F Horizontal Directional Drill Machine 230kN Directional Drill Rig
XZ230F Horizontal Directional Drill Machine 230kN Directional Drill Rig

Large Image :  XZ230F Horizontal Directional Drill Machine 230kN Directional Drill Rig

Product Details:
Place of Origin: China
Brand Name: Rongchang Machinery
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: standard packing, as customer demands
Delivery Time: 15 - 30 Days
Payment Terms: L/C,T/T,etc.
Contact Now
Detailed Product Description
Highlight:

xz230f horizontal directional drill machine

,

230kn directional drill rig

,

horizontal directional drill machine 230kn

No specific attributes provided - Horizontal Directional Drill Machine by Rongchang Machinery



project unit XZ230F
engine - Cummins
rated power kW/r/min 118/2200
Maximum  thrust&pullback force kN 230
Maximum thrust&pullback speed m/min 55
Torque N·m 7000
Maximum speed r/min 190
Maximum flow L/min 250
greatest pressure MPa 8
Drill pipe mm×m φ60×3
Lifting weight t —
Lifting moment t·m —
Maximum penetration angle ° 20
quality t 8.5
Dimensions mm 6100×2230×2300
Remark - Optional: 1. Cab; 2. Heating and cooling air conditioning; 3. Fully automatic gripper; 4. Double anchorage; 5. Mud antifreeze; 6. Wireless walking; 7. Thread oil application;
