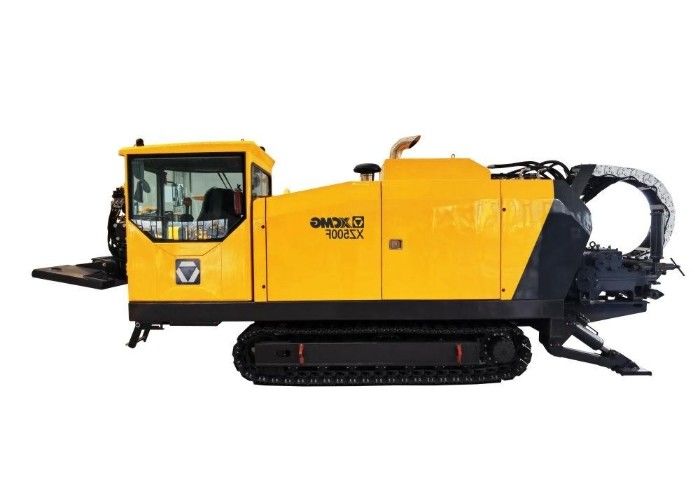

XZ500F Directional Boring Rig 10mPa Horizontal Directional Drilling Rigs

XZ500F Directional Boring Rig 10mPa Horizontal Directional Drilling Rigs
XZ500F Directional Boring Rig 10mPa Horizontal Directional Drilling Rigs

Large Image :  XZ500F Directional Boring Rig 10mPa Horizontal Directional Drilling Rigs

Product Details:
Place of Origin: China
Brand Name: Rongchang Machinery
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: standard packing, as customer demands
Delivery Time: 15 - 30 Days
Payment Terms: L/C,T/T,etc.
Contact Now
Detailed Product Description
Highlight:

xz500f directional boring rig

,

directional boring rig 10mpa

,

10mpa horizontal directional drilling rigs

Horizontal Directional Drill Machine Precision Borehole Drilling Equipment by Rongchang Machinery



project unit XZ500F
engine - Cummins
rated power kW/r/min 194/2200
Maximum thrust&pullback force kN 500
Maximum thrust&pullback speed m/min 55
Torque N·m 27000
Maximum speed r/min 140
Maximum flow L/min 600
greatest pressure MPa 10
Drill pipe mm×m φ89×3/4.5
Lifting weight t Choice: 2
Lifting moment t·m Choose: 4
Maximum penetration angle ° 20
quality t 14.5
Dimensions mm 7500×2280×2610
Remark - Optional: 1. Mud anti-freeze; 2. Power increase; 3. 800L mud pump 4. Truck-mounted crane;
