XZ600F Underground Drilling Machine Engine 600kN Hdd Machine
Place of Origin:China
Brand Name:Rongchang Machinery
Minimum Order Quantity:1 pc
Price:Negotiable
Payment Terms:L/C,T/T,etc.
Product Details
Highlight:
xz600f underground drilling machine
,600kn hdd machine
,underground drilling machine engine
Product Description

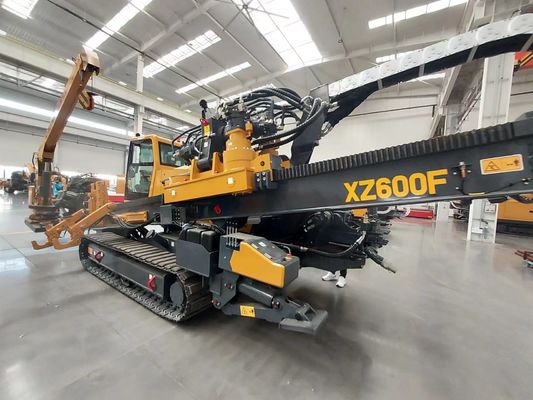

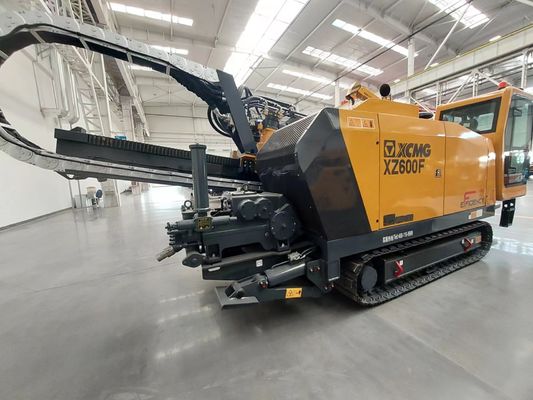

XZ600F Underground Drilling Machine Engine 600kN Hdd Machine
| project | unit | XZ600F |
| engine | - | |
| rated power | kW/r/min | 194/2200 |
| Maximum thrust&pullback force | kN | 600 |
| Maximum thrust&pullback speed | m/min | 55 |
| Torque | N·m | 31000 |
| Maximum speed | r/min | 140 |
| Maximum flow | L/min | 600 |
| greatest pressure | MPa | 10 |
| Drill pipe | mm×m | φ89×4.5/3 |
| Lifting weight | t | 2 |
| Lifting moment | t·m | 4 |
| Maximum penetration angle | ° | 20 |
| quality | t | 16 |
| Dimensions | mm | 9000×2280×2640 |
| Remark | - | Optional: 1. Mud anti-freeze; 2. Power increase; 3. 800L mud pump; |
