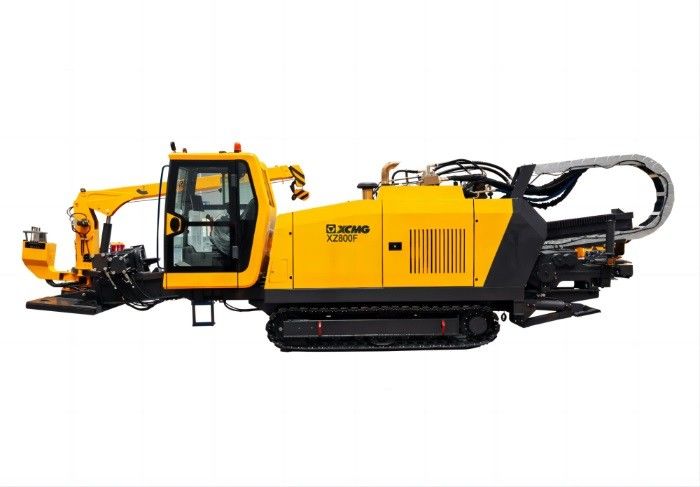

Yellow Rongchang Horizontal Directional Drill Machine Underground Installation

Large Image : Yellow Rongchang Horizontal Directional Drill Machine Underground Installation

Product Details:

Place of Origin:	China
Brand Name:	Rongchang Machinery

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Price:	Negotiable
Packaging Details:	standard packing, as customer demands
Delivery Time:	15 - 30 Days
Payment Terms:	L/C,T/T,etc.

Contact Now

Detailed Product Description

Highlight:

rongchang horizontal directional drill machine

horizontal directional drill machine underground

yellow directional drilling machine

project	unit	XZ800F
engine	-	Cummins
rated power	kW/r/min	213/2100
Maximum thrust&pullback force	kN	880
Maximum thrust&pullback speed	m/min	55
Torque	N·m	35000
Maximum speed	r/min	120
Maximum flow	L/min	600
greatest pressure	MPa	10
Drill pipe	mm×m	φ89/φ102×4.5
Lifting weight	t	2
Lifting moment	t·m	4
Maximum penetration angle	°	20
quality	t	18
Dimensions	mm	10650×2450×2600
Remark	-	Optional: Increased power
