10MPa Horizontal Directional Drill XZ1350F HDD Equipment For Pipeline Installation

10MPa Horizontal Directional Drill XZ1350F HDD Equipment For Pipeline Installation
10MPa Horizontal Directional Drill XZ1350F HDD Equipment For Pipeline Installation

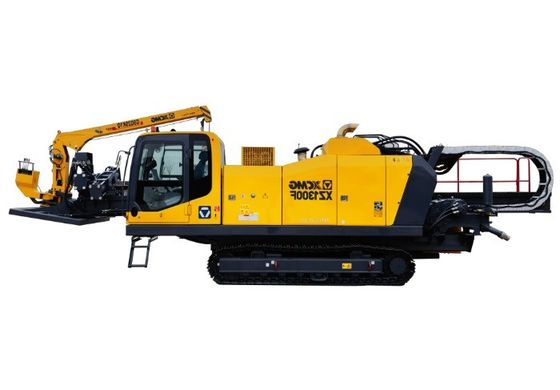

Large Image :  10MPa Horizontal Directional Drill XZ1350F HDD Equipment For Pipeline Installation

Product Details:
Place of Origin: China
Brand Name: Rongchang Machinery
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: standard packing, as customer demands
Delivery Time: 15 - 30 Days
Payment Terms: L/C,T/T,etc.
Contact Now
Detailed Product Description
Highlight:

10mpa horizontal directional drill

,

xz1350f hdd equipment

,

horizontal directional drill xz1350f

Horizontal Directional Drill Precision HDD Equipment for Pipeline Installation



project unit XZ1350F
engine - Cummins
rated power kW/r/min 264/2100
Maximum thrust&pullback force kN 1350
Maximum thrust&pullback speed m/min 45
Torque N·m 48000
Maximum speed r/min 100
Maximum flow L/min 800
greatest pressure MPa 10
Drill pipe mm×m φ114/φ127×6
Lifting weight t 2
Lifting moment t·m 4
Maximum penetration angle ° 18
quality t 25
Dimensions mm 11680×2760×3550
Remark - Optional: Increased power





Tag:

horizontal directional drilling rig,

hdd drill rig,

directional boring equipment
