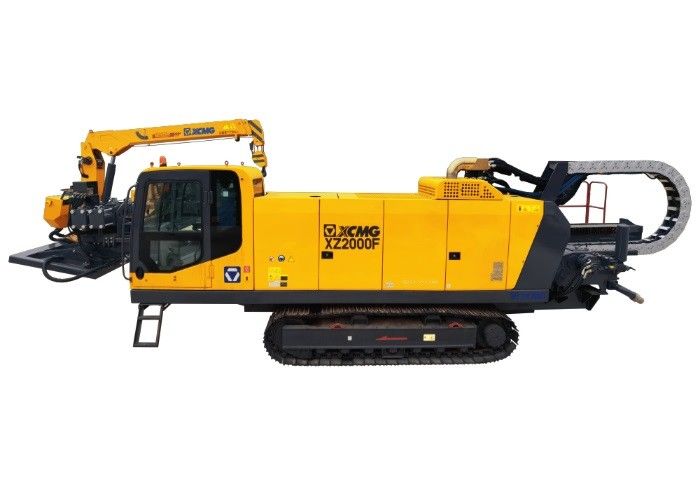

Rotating XZ2000F Hdd Boring Machine 10MPa Hydraulic Directional Drilling

Place of Origin:China

Brand Name:Rongchang Machinery

Minimum Order Quantity:1 pc

Price:Negotiable

Payment Terms:L/C,T/T,etc.

Product Details

Highlight:

xz2000f hdd boring machine

,

hdd boring machine 10mpa

,

10mpa hydraulic directional drilling

Product Description

Horizontal Directional Drill Machine with Advanced Technology and Precision Controls by Rongchang Machinery

project	unit	XZ2000F
engine	-
rated power	kW/r/min	294/2100
Maximum thrust&pullback force	kN	2000
Maximum thrust&pullback speed	m/min	45
Torque	N·m	70000
Maximum speed	r/min	105
Maximum flow	L/min	800
greatest pressure	MPa	10
Drill pipe	mm×m	φ127×6
Lifting weight	t	3.2
Lifting moment	t·m	6.4
Maximum penetration angle	°	18
quality	t	29
Dimensions	mm	12000×2760×3550
Remark	-	Optional: 1. Rotating semi-automatic 2.950L/min mud pump;
