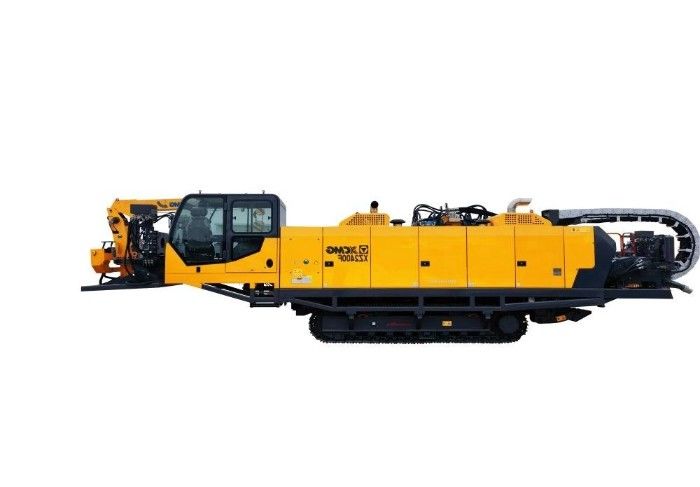

Rotary Horizontal Directional Drilling Equipment 2400kN Horizontal Drilling Rig

Rotary Horizontal Directional Drilling Equipment 2400kN Horizontal Drilling Rig
Rotary Horizontal Directional Drilling Equipment 2400kN Horizontal Drilling Rig

Large Image :  Rotary Horizontal Directional Drilling Equipment 2400kN Horizontal Drilling Rig

Product Details:
Place of Origin: China
Brand Name: Rongchang Machinery
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: standard packing, as customer demands
Delivery Time: 15 - 30 Days
Payment Terms: L/C,T/T,etc.
Contact Now
Detailed Product Description
Highlight:

rotary horizontal directional drilling equipment

,

2400kn horizontal drilling rig

,

horizontal directional drilling equipment 2400kn

Directional Drilling Machine Rongchang Machinery Horizontal Drill Rig



project unit XZ2400F
engine - Cummins
rated power kW/r/min 2×242/2100
Maximum thrust&pullback force kN 2400
Maximum thrust&pullback speed m/min 50
Torque N·m 85000
Maximum speed r/min 100
Maximum flow L/min external
greatest pressure MPa 10
Drill pipe mm×m φ127×6
Lifting weight t 3.2
Lifting moment t·m 6.4
Maximum penetration angle ° 16
quality t 33
Dimensions mm 13700×3230×3450
Remark - Optional: 1.950L/min mud pump; 2. Rotary semi-automatic;





Tag:

horizontal directional drilling rig,

hdd drill rig,

directional boring equipment
