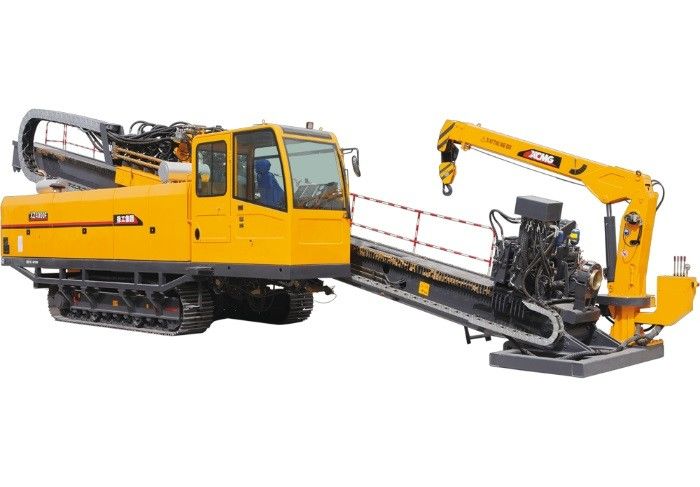

Compact HDD Machine Hydraulic Power XZ4000F Directional Drilling Rig

Compact HDD Machine Hydraulic Power XZ4000F Directional Drilling Rig
Compact HDD Machine Hydraulic Power XZ4000F Directional Drilling Rig

Large Image :  Compact HDD Machine Hydraulic Power XZ4000F Directional Drilling Rig

Product Details:
Place of Origin: China
Brand Name: Rongchang Machinery
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: standard packing, as customer demands
Delivery Time: 15 - 30 Days
Payment Terms: L/C,T/T,etc.
Contact Now
Detailed Product Description
Highlight:

compact hdd machine

,

xz4000f directional drilling rig

,

hdd machine hydraulic power

Compact HDD Machine with Hydraulic Power System Rongchang Machinery



Parameter configuration



project unit XZ4000F
engine - Cummins
rated power kW/r/min 2×264/2100
Maximum thrust&pullback force kN 4000
Maximum thrust&pullback speed m/min 40
Torque N·m 130000
Maximum speed r/min 90
Maximum flow L/min external
greatest pressure MPa 10
Drill pipe mm×m φ140/φ168×9.6
Lifting weight t 3.2
Lifting moment t·m 6.4
Maximum penetration angle ° 16
quality t 48
Dimensions mm 17500×3200×3550
Remark - Optional: 1. Split operating room; 2. Rotating semi-automatic;





Tag:

horizontal directional drilling rig,

hdd drill rig,

directional boring equipment
