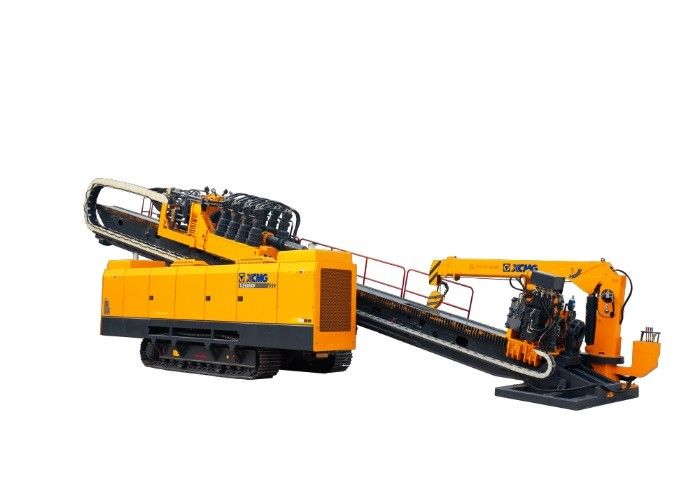

5000kn Hdd Rig Heavy Duty XZ5000F Directional Boring Equipment

5000kn Hdd Rig Heavy Duty XZ5000F Directional Boring Equipment
5000kn Hdd Rig Heavy Duty XZ5000F Directional Boring Equipment

Large Image :  5000kn Hdd Rig Heavy Duty XZ5000F Directional Boring Equipment

Product Details:
Place of Origin: China
Brand Name: Rongchang Machinery
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: standard packing, as customer demands
Delivery Time: 15 - 30 Days
Payment Terms: L/C,T/T,etc.
Contact Now
Detailed Product Description
Highlight:

5000kn hdd rig

,

xz5000f directional boring equipment

,

5000kn directional boring equipment

Heavy Duty Horizontal Directional Drill Machine for Precision Underground Utility Installation





project unit XZ5000F
engine - Cummins
rated power kW/r/min 2×294/2100
Maximum thrust&pullback force kN 5000
Maximum thrust&pullback speed m/min 35
Torque N·m 140000
Maximum speed r/min 90
Maximum flow L/min external
greatest pressure MPa 10
Drill pipe mm×m φ140/φ168×9.6
Lifting weight t 3.2
Lifting moment t·m 6.4
Maximum penetration angle ° 16
quality t 53
Dimensions mm 17500×3200×3650
Remark - Optional: 1. Split operating room; 2. Rotating semi-automatic;
