XZ6600 Horizontal Directional Drilling Rig VolvoTAD1643 Directional Drilling Machine

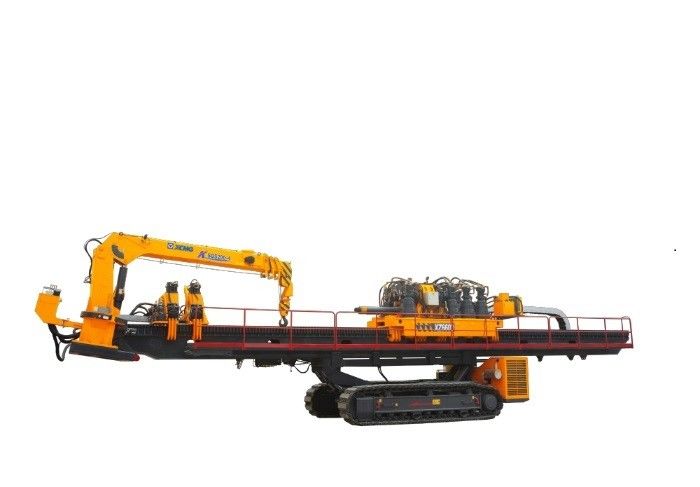

Large Image : XZ6600 Horizontal Directional Drilling Rig VolvoTAD1643 Directional Drilling Machine

Product Details:

Place of Origin:	China
Brand Name:	Rongchang Machinery

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Price:	Negotiable
Packaging Details:	standard packing, as customer demands
Delivery Time:	15 - 30 Days
Payment Terms:	L/C,T/T,etc.

Contact Now

Detailed Product Description

Highlight:

xz6600 horizontal directional drilling rig

horizontal directional drilling rig volvotad1643

xz6600 horizontal drilling rig

Rongchang Machinery Horizontal Directional Drill for Precise Underground Drilling

Expert evaluation:
The XZ6600 horizontal directional drilling rig is an integrated fully self-loaded drilling rig that adopts a number of advanced control technologies such as electro-hydraulic proportional control and load-sensitive control as well as the company's proprietary technology. Its main performance parameters and control technology have reached the international advanced level. Major components such as the hydraulic system are made of international famous brand products with high reliability.

project	unit	XZ6600
engine	-	VolvoTAD1643
rated power	kW/r/min	2×565/1850
Maximum thrust&pullback force	kN	6600
Maximum thrust&pullback speed	m/min	35
Torque	N·m	21000
Maximum speed	r/min	90
Maximum flow	L/min	external
greatest pressure	MPa	10
Drill pipe	mm×m	φ168/φ194×9.6
Lifting weight	t	5
Lifting moment	t·m	12.5
Maximum penetration angle	°	16
quality	t	73
Dimensions	mm	19000×3200×3600
Remark	-	Optional: 1. Split operating room; 2. Rotating semi-automatic;
