Precision XZ13600 Horizontal Directional Drilling Rig 15000kN HDD Equipment

Precision XZ13600 Horizontal Directional Drilling Rig 15000kN HDD Equipment
Precision XZ13600 Horizontal Directional Drilling Rig 15000kN HDD Equipment

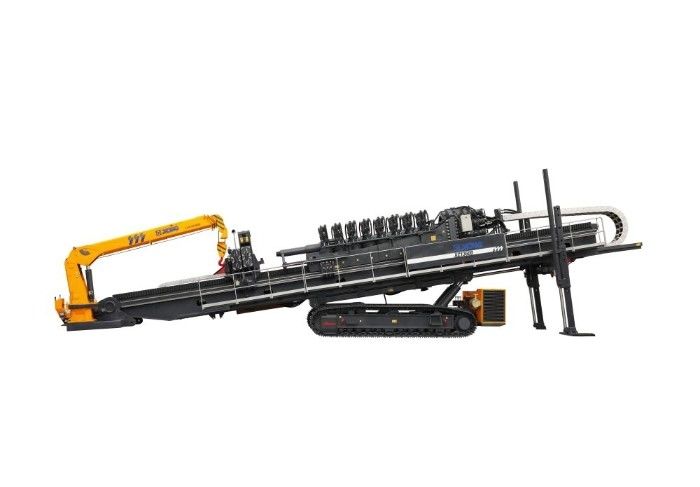

Large Image :  Precision XZ13600 Horizontal Directional Drilling Rig 15000kN HDD Equipment

Product Details:
Place of Origin: China
Brand Name: Rongchang Machinery
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: standard packing, as customer demands
Delivery Time: 15 - 30 Days
Payment Terms: L/C,T/T,etc.
Contact Now
Detailed Product Description
Highlight:

xz13600 horizontal directional drilling rig

,

15000kn hdd equipment

,

horizontal directional drilling rig 15000kn

Rongchang Machinery Horizontal Directional Drill Precision Drilling Equipment



Parameter configuration



project unit XZ13600
engine - Cummins M15
rated power kW/r/min 3×472/1800
Maximum thrust&pullback force kN 15000
Maximum thrust&pullback speed m/min 32
Torque N·m 260000
Maximum speed r/min 100
Maximum flow L/min external
greatest pressure MPa 10
Drill pipe mm×m φ219/φ254×9.6
Lifting weight t 10
Lifting moment t·m 25
Maximum penetration angle ° 16
quality t 135
Dimensions mm 20000×3400×4700
Remark - Optional: 1. Split operating room; 2. Rotating semi-automatic;
